Shackle Pendulum

$10.00

Add to Quote
Product Added to Quote Successfully.
View Quote
SKU: SH167 Category: Tag:

Description

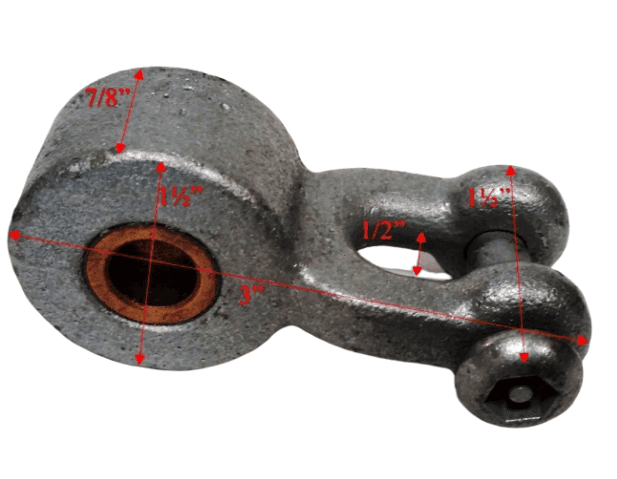

1″ Replacement Shackle Pendulum for Ductile & Steel Swing Hangers

Shackle Pendulum – Bolt & Nut Not Included (1” galvanized ductil iron replacement pendulum)

This shackle pendulum opening 1/2″, will save the cost and hassle of installing an S-hook. Use this to attach chains to swing hangers. Bolt pin has a tamper resistant head that requires an allen wrench with special hole to open and close. Can be used with any ductile iron or stamped steel hanger.  It has a .51 ID oil light bearing and axle bolt with lock tight nut and accepts a 12mm bolt.  The ID of the bearing is 13.1mm +/-0.05.  Uses 12mm bolt and nut.  Nut & bolt not included.  This product should last 2 years in harsh conditions and up to 5 years in optimal conditions. Some conditions may require replacement sooner.  Tensile strength is 8300 lbs.  Sold as each.

Additional information

Size

,
